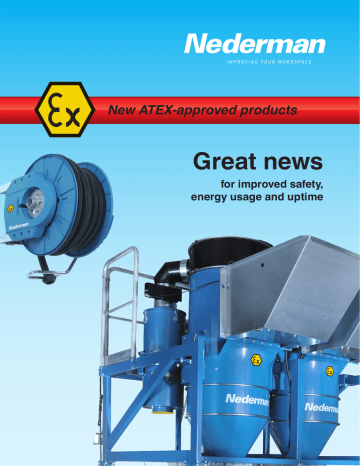

New ATEX-approved products
Great news
for improved safety,
energy usage and uptime
FlexFilter EX
Optimal safety,
capacity and uptime
The Nederman FlexFilter series has been expanded
with the new FlexFilter EX, which is fully
compliant with the ATEX directives. The sturdy
construction with ATEX-approved components, New
electrically shielded installations and components
makes the FlexFilter EX capable of safely
handling explosive materials such as composite dust.
• Control for prolonged lifetime
A Running Time Equalizer sets the running
time between the two filters ensuring it is
divided equally, which prolongs the system’s
lifetime.
• Automatic filter cleaning
and disposal
FlexFilter EX has a control unit for
automatic filter cleaning and disposal during
operation. The cleaning process is highly
effective as well as energy efficient.
• Energy efficient operation
The operation and motor speed of the
vacuum units (RBU alt VAC) are constantly
controlled. Only the vacuum unit that is
needed at any given moment is running.
Delivered ready for installation
with two filter units, safeguarding
maximum uptime. Each section
supports the other, making the system
capable of running during service and
maintenance.
2
1
Explosion isolation valves
(one for each inlet pipe from production hall)
2
Extraction air inlet from production hall
3
Explosion relief panels with deflectors
4
FlexFilter Twin EX
5
Vacuum units with Frequency Inverter
6
Control filters
7
Dust disposal in Big bags
FlexFilter EX can be equipped with vacuum unit RBU or VAC
5
1
3
4
6
7
Vacuum Hose Reel Series 881 EX
Easy access and safe storage
The new vacuum hose reel Series 881 EX offers
a convenient vacuum supply and is out of the way
when not in use. The reel is equipped with automatic
damper.
New
Hose dimensions: Ø 38 mm and 50 mm.
Hose length: 10 m
The new generation Series EX is approved
for use in ATEX-zone 22, Category 3D.
Automatic vacuum valve
TAV50EX / TAV100EX / TAV150EX
Reduces operation cost
and plant investment
New
In general a vacuum system is used only part-time of
the working day. With an automatic Nederman TAV
valve on each extraction outlet the valve closes and
the airflow ceases immediately as the tool stops. Only
those outlets that are in operation utilize the vacuum
plant capacity.
The results are:
• Reduced operation cost
• Reduced investment due to the system
can be “down-sized”
• Less noise
• Less extraction of heated or cooled air.
The pneumatically operated valves are made of conductive
material for use in explosive applications.
Dust Applic
ation
Description
To be filled
in by the respon
sible Nederm
an sales repres
Mandatory
entative.
fields are marke
Other fields
d by *
may be filled
in filled the
information
is available
Date*:
1. Custom
Company*:
Application
er/End user
reference
No
Address*:
Phone:
Fax:
Responsible
e-mail:
*:
Title:
Based on our Dust Application Description we recommend suitable safety systems and total solutions.
Our services include pre-studies/planning, system design, commissioning, training and maintenance.
Safe solutions based on extensive
know-how and long experience
2. Sales resp
onsibility
Neder man
sales repres
entative*:
Signature:
I certify that
the
requirements information in this docum
(page 4) regard
ent is correct
informed by
as far as I know
me of the risks ing the installation
and
have been
and necess
followed. The that any special
ary safety proced
customer has
ures.
been fully
Please return
this applica
tion as a micros
oft word file
to: technicalsupp
ort@nederma
n.se
Printed: 10-03-0
2
Please enclose
an attachm
155202 (3)
2008-05-16
Application
ref. No:
ent if the assigne
d space is
not enough
to
write in.
Page 1 of 5
For more than 60 years Nederman has developed, manufactured
and marketed products and systems to reduce the strain on the
environment and improve working conditions This includes an
incomparable experience of providing safe and reliable solutions for handling explosive substances in numerous industries
worldwide.
• Food and feed products
• Composite and Plastic manufacturing
• Metalworking: in aluminium, magnesium,
titanium, chromium, etc
• Pharmaceutical processes
• Chemical processes
• Wood working
• Pulp and paper manufacturing
